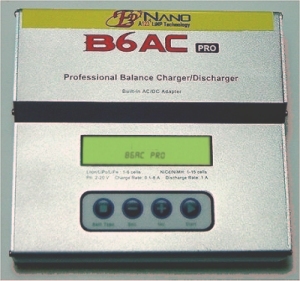

ED-Nano B6AC Pro
Professional Balancing Charger/Discharger
with AC/DC Power
A Super-convenient,
Super-capable, E-Z to use, No-Hassle, Charger!
Charge EVERY kind of
battery used in RC
at home (AC power) or at the field (DC power)
with up to 5 Amps or 50 Watts!
Every modeler's dream come
true!
- Cells are individually
balanced-while-charging... Get back in the
air faster!
- Super E-Z, No-Muss, No-Fuss Operation - No head-scratching, Manual-page flipping...
- Real-time readout of individual cell
voltages - Diagnose battery problems BEFORE
they become serious!
- Displays "mAH added" when charged - Useful for estimating in-flight power consumption!
- Backlit, BRIGHT Liquid
Crystal Display - EZ-to-read, even in low
light conditions!
- Brushed Aluminum grounded enclosure - acts as a heatsink and safety shield
- Best of All, it works on AC at home, and DC at the field! - How cool is that?
Specifications
| Power Input |
AC 100v~240v 50/60Hz
DC 11.0~18.0v |
| Output |
Charge current range: 0.1~5.0A; Max. charge power 50W
Discharge current range: 0.1~1.0A; Max. discharge power 5W |
| Charging capability |
6 cells LiPo/Li-ion/LiFe/A123
15 cells NiCd/NiMH
10 cells (20V) Lead-Acid (Gel Cell) |
| Balancing current LiPo/Li-ion/LiFe/A123 |
up to 300mA/cell |
| Safety Features |
Delta-peak sensitivity adjustment
Capacity limit
Charging time limit
Input power voltage monitor
Temperature limit with optional temperature probe
Charging & Monitoring the voltage of individual cells |
| Connectors/cables included |
Input Cables:
- 3-prong AC (US-style)
- "12V" DC input with 2.5mm DC jack (11.0~18.0 VDC) and alligator clips
Output Charge Cables:
- Banana Plugs to Deans Ultra "T"
- Deans Ultra to:
- Glow Starter
- Futaba-J
- Alligator Clips
- JST-BEC
Balancing ports (on side of charger):
|
| Weight |
531g(Net Weight) |
| Dimensions |
134 x 142 x 36mm |
Optional (but very convenient!)Accessories:
A123 batteries perform best when they are balance-charged.
This requires a Node/Balance connection between the battery and the charger.
We offer the following accessories at a discount, to go with the ED-Nano B6AC Pro:
